One of the fundamental questions for the Oracle DBA who is exploring Oracle 12c new multi-tenant architecture is how to create a pluggable database.

here i am exploring 2 methods……Let us start.

Method 1: using SQL Developer

After connecting to the database, you need to add the “DBA” option.

In sql developer go to “view”——–> then choose “DBA.

Then add the already defined database connection:

And choose “OK”
Then, right click on “Container Database” and choose “Create_Pluggable Database” option

The associated SQL definition output:

CREATE PLUGGABLE DATABASE DUMMY_PDB ADMIN USER DUMMY_ADMIN IDENTIFIED BY dummy55

FILE_NAME_CONVERT=(

‘/oracle/DCE/DCE/pdbseed/’, ‘/oracle/DCE/DCE/dummypdb/’

)

STORAGE (

MAXSIZE 50M

MAX_SHARED_TEMP_SIZE UNLIMITED

)

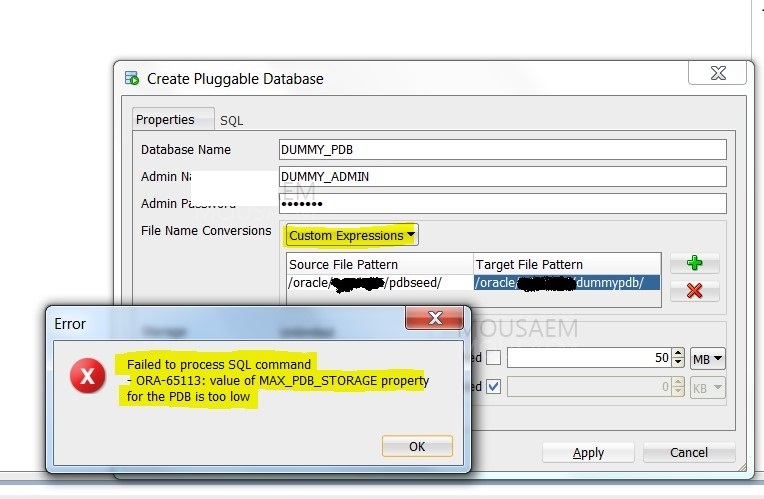

When I hit “Apply”, I received the error ORA-65113: value of MAX_PDB_STORAGE property  for the PDB is too low

---

---

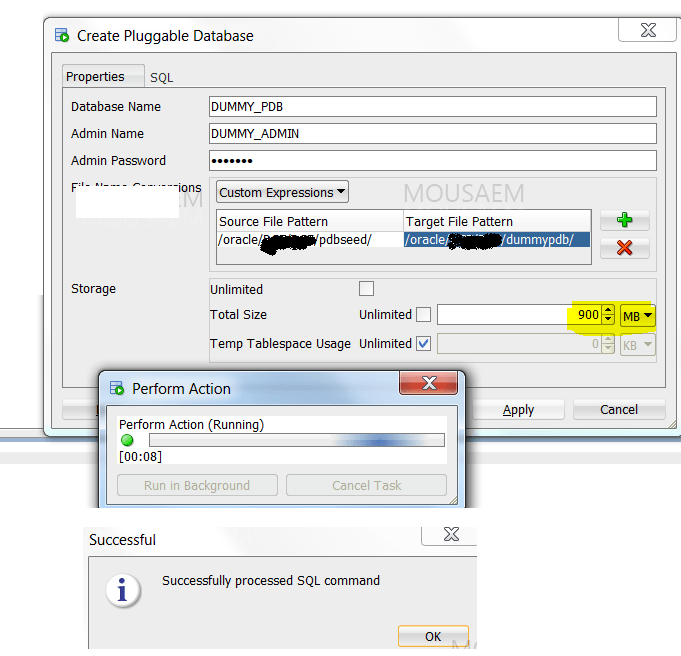

When I increased the value to 900 MB, the execution was successful

You will find that the new pluggable database has been created successfully:

Method 2: using Traditional SQL Statement

—Creating Pluggable database from “seed”

SQL> CREATE PLUGGABLE DATABASE sales_pdb

ADMIN USER dbapower IDENTIFIED BY fofo431

ROLES = (dba)

DEFAULT TABLESPACE TS_SALES_DATA_01

DATAFILE ‘/oracle/DB45/sapdata1/sales01.dbf’ SIZE 100M AUTOEXTEND OFF

FILE_NAME_CONVERT = (‘/oracle/DB45//DB45/pdbseed/’,

‘/oracle/DB45//DB45/salespdb/’)

STORAGE (MAXSIZE 1G)

PATH_PREFIX = ‘/oracle/DB45/DB45//salespdb/’;
